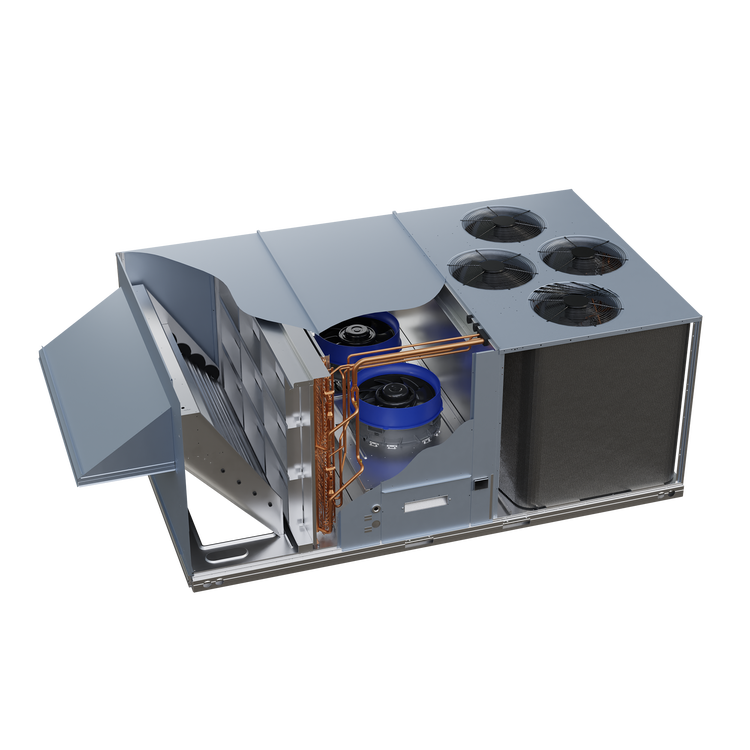

Rdg single-packaged hybrid heat rooftop unit
Content
RDG
Single-Packaged Hybrid Heat Rooftop Unit
This hybrid heat rooftop unit with Puron Advance™ and Axion™ Fan Technology offers an environmentally sustainable solution for a brighter future. The direct drive Axion™ indoor fan system uses a Vane Axial fan and electronically commutated motor.
Button
Button Aria Label
Find A Dealer
Features & Benefits (open)
- R-454B refrigerant meets and exceeds EPA’s new low GWP requirements
- Digital controller included standard to allow for adjustable gas changeover setpoints, flexible operation and either thermostat or DDC control
- New – UL 60335-2-40 Certified A2L leak detection and dissipation system factory installed standard
- Direct Drive Axion™ Technology indoor fan system uses Vane Axial fan design & electronically commutated motor
- Two-stage cooling capacity control on all models
- Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 Standard, sloping design; side or center drain
- Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection
- Exclusive IGC solid-state control for on-board diagnostics with LED error code designation, burner control logic and energy saving indoor fan motor delay
- Units meet and exceed ASHRAE 90.1 energy efficiency levels.
- Large access panels with easy grip handles
- Innovative, easy starting, no-strip screw feature on unit access panels
- Two-inch disposable return air filters
- Tool-less filter access door
- New Vane Axial evaporator-fan system has no fan belts, pullies, blower shaft and blower bearings with slide out design
- Control includes onboard diagnostics with alert and alarm LEDs
- A2L leak detection and dissipation system standard
- Highly protected Tandem Scroll compressors with internal line-break overload protection
- 24-volt control circuit protected with resettable circuit breaker
- Permanently lubricated evaporator-fan motor
- Totally enclosed condenser motors with permanently lubricated bearings
- Loss of charge, freeze protection, and high-pressure switches
- Exclusive IGC anti-cycle protection for gas heat operation
- Solid-state electronic direct spark ignition system
- Flame roll-out safety protector
- Liquid line filter drier on each circuit
Specifications
- Up to IEER up to 17.0, COP up to 3.5
- Cooling operating range up to 125 °F (52°C) and down to 40°F (-4°C).
- Same footprint as prior models for original fit; reduces installation costs and time
- Available in vertical and horizontal airflow configurations
- Provisions for thru-the-bottom power entry capability as standard
- Single point electric, gas, and controls connections available
- Full perimeter base rail with built-in rigging adapters and fork truck slots
Warranty Details
- 15 years parts only heat exchanger - stainless steel
- 5 years parts only compressor
- 3-year controller
- One year parts only on all other parts
- Additional extended warranty packages available
Product Details (open)
Reference: table
Documents
Reference: document-listing
IEER: Up to 17.0
IEER (Integrated Energy Efficiency Ratio): Reflects a system’s overall seasonal cooling efficiency by averaging performance across multiple part-load operating conditions.
COP: Up to 3.5
COP (Coefficient of Performance): Expresses how efficiently a heat pump produces heat by comparing the amount of heating output to the electrical energy it consumes at a given operating condition.
Two-Stage Operation
Operation
A single-stage unit operates at full capacity when on, a two-stage unit has two levels of operation (low for mild heating needs and high for maximum heating), and a modulating unit continuously adjusts its output to match the precise heating demands, offering more efficient and consistent temperature control.
