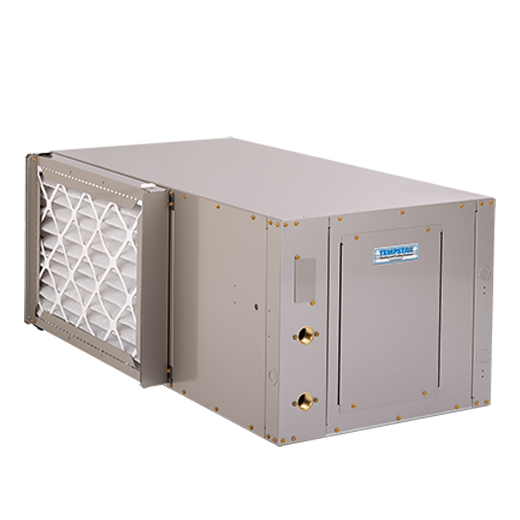

HBR
Performance Multi-Speed Geothermal Heat Pump
With airflow that is optimized to your home, the multi-speed model HBR delivers the comfort you want and the geothermal savings you deserve. To keep sound to a minimum and enjoyment to the maximum, this packaged model includes built-in sound-reducing features such as full cabinet insulation, double-isolation compressor mounts, and a sound blanket.
Features & Benefits
- High-efficiency comfort while managing your heating and cooling costs (efficiency is unit size dependent)
- Variable-speed air delivery aids quiet performance
- Wide operating temperature range with exceptional cold weather performance
- 2" MERV 8 filtration
- Two-stage compressor operation (2-5 ton); single-stage operation (1.5 ton)
- Insulated cabinet for quiet operation Large operating temperature range with outstanding cold weather performance
- Corrosion-resistant coil for durability
- Uses lower global warming potential R-454B refrigerant
- Active R-454b refrigerant A2L dissipation system factory installed
- Passive dehumidification standard
- Filter cabinet built-in for easy filter changes
- 10-year parts and 5-year labor limited warranty 1
OPTIONAL FEATURES
- Supplemental, domestic hot water generation
- Internally-mounted auxiliary heat
- Smart startup add-on for smoother operation
Specifications
- 3.7 to 4.3 COP Heating Efficiency (closed loop)
- 4.3 to 5.2 COP Heating Efficiency (open loop)
- 18.5 to 21.7 EER Cooling Efficiency (closed loop)
- 22.7 to 28.1 EER Cooling Efficiency (open loop)
- Two-stage compressor
- Multi-speed blower motor
- Fully insulated cabinet
- ENERGY STAR ® qualified in all sizes
Product Details
| 3.7 to 4.3 COP |
Heating Efficiency (closed loop)Closed-loop heating efficiency refers to the geothermal heat pump's ability to transfer heat from the earth to a home using a closed loop of underground pipes. The efficiency is measured in Coefficient of Performance (COP), which represents the ratio of heat output to the amount of electrical energy consumed. A higher COP indicates greater efficiency, meaning the system can provide more heating for less energy use. |
| 4.3 to 5.2 COP |
Heating Efficiency (open loop)Open-loop heating efficiency refers to a geothermal heat pump's ability to use a water source, such as a well or a nearby lake, to transfer heat into a home. The efficiency is measured in Coefficient of Performance (COP), which represents the ratio of heat delivered to the amount of energy consumed. A higher COP indicates better efficiency, meaning the system can deliver more heating for less energy input, with the water source acting as a constant heat reservoir. |
| 18.5 to 21.7 EER |
Cooling Efficiency (closed loop)Closed-loop cooling efficiency for a geothermal heat pump refers to the system's ability to remove heat from a home by transferring it to the ground through a closed loop of underground pipes. The efficiency is measured in Coefficient of Performance (COP), which indicates the ratio of cooling output to the energy input. A higher COP signifies better efficiency, meaning the system can provide more cooling for less energy consumption, with the earth acting as a stable and efficient heat sink. |
| 22.7 to 28.1 EER |
Cooling Efficiency (open loop)Open-loop cooling efficiency for a geothermal heat pump refers to the system's ability to remove heat from a home by using a water source, such as a well or pond, to absorb the heat. The efficiency is measured in Coefficient of Performance (COP), which represents the ratio of cooling output to the electrical energy consumed. A higher COP indicates better efficiency, meaning the system can remove more heat for less energy use, with the water source providing a reliable and consistent means for heat exchange. |
| U.S. Environmental Protection Agency voluntary program that helps protect climate through energy efficiency |
Documents
Categories
geothermal
1. To the original owner, when installed in a residence, a 10-year parts limited warranty upon timely registration of equipment. Warranty period is 5 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year limited parts and 5 year labor limited warranty. See warranty certificate for details.
