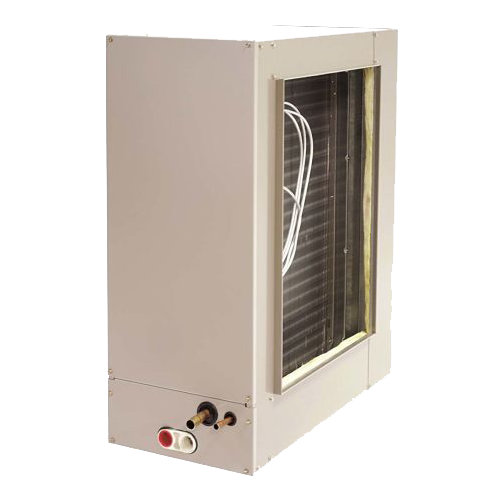

EHD4X

Performance Evaporator Coil

Get the most comfort out of your air conditioner or heat pump with an evaporator coil that matches your outdoor unit. This horizontal slab coil aids narrow space installations and supports your system efficiency. It features durable all-aluminum construction designed to fit your system and deliver lasting performance.

Find A Dealer

Features & Benefits

  • Cased horizontal slab coil design for bi-directional airflow
  • Efficiency-optimizing Thermostatic Expansion Valve (TXV)
  • Corrosion-resistant all-aluminum coil
  • Fully insulated cabinet
  • Corrosion-free sloped drain pan design helps reduce mold and bacterial buildup
  • 10-year parts limited warranty*

Specifications

  • Thermostatic Expansion Valve (TXV)
  • Horizontal bi-directional airflow design
  • Sturdy galvanized steel cabinet
  • Non-ozone-depleting R-410A refrigerant
  • Capacity: 2 - 5 tons

Product Details

Capacity Capacity

2 - 5 tons

Capacity

The amount of heat a unit can absorb from the air in a given period of time. It is measured in tons, with one ton equaling 12,000 BTUs.

Flow Design Flow Design

Cased horizontal slab coil design for bi-directional airflow

Flow Design

How the airflow is directed across the coil's surface during the cooling process.

Shape Shape

Horizontal bi-directional airflow design

Shape

The shape of the evaporator coil can influence the efficiency, performance, and space requirements of an HVAC system.

Parts Warranty Parts Warranty

10-Year Parts Limited Warranty
