DLCSRB

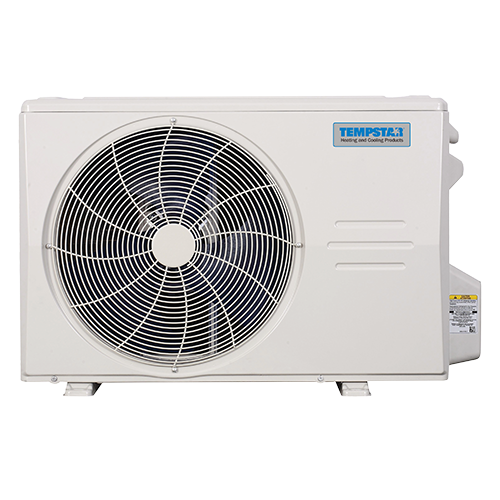

QuietComfort® Heat Pump

The new heat pump is a powerhouse unit with up to 26.4 SEER2 and up to 15.8 EER2 efficiency. Features like Refrigerant Leakage Detection and Condenser High-Temperature Protection make this unit intelligent as well as efficient. Available in sizes from 9 to 36 with four different style indoor unit options, there is certainly a system to meet your cooling and heating needs.

Icon of a question mark
  • Inverter Compressor
  • Up to 26.4 SEER2 cooling efficiency
  • Up to 15.8 EER2 heating efficiency
  • Available in 115V and 208/230V
  • Sizes: 09 / 12 / 18 / 24 / 30 / 36
  • 100% heating capacity at 5° F (-15° C) Sizes 12-18 (208/230V)
  • Built-in basepan heater
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Extremely quiet outdoor operation, as low as 54 dB(A)1
  • Anti-corrosive fin coating
  • 10-Year Parts Limited Warranty2
  • Up to 26.4 SEER2
  • Up to 15.8 EER2
  • Up to 12.4 HSPF2
  • Outdoor sound: as low as 54 decibels1
  • Cooling operating range -13° ~ 122° F (-25° ~ 50° C)
  • Heating operating range -22° ~ 86° F (-30° ~ 30° C) – sizes 9-24 (208/230V)
  • Heating operating range -13° ~ 86° F (-25° ~ 30° C) – sizes 9, 12 (115V) & 30, 36 (208/230V)
  • Piping length 82 ~ 164 ft. (25 ~ 50 m)
  • Inverter Compressor
  • 0.75 – 3.0 Ton
  • 115V & 208/230V
  • Heavy-gauge, galvanized steel construction
  • Primed and coated with a 100% coverage, baked-enamel finish in white
  • Up to 26.4 SEER2
  • Up to 15.8 EER2
  • Up to 12.4 HSPF2
Cooling Efficiency Cooling Efficiency help_outline
Up to 26.4 SEER2
Heating Efficiency Heating Efficiency help_outline
Up to 12.4 HSPF2

1 Quietest size within each model group during low fan-speed operation

2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
